Sudwind co2 meter

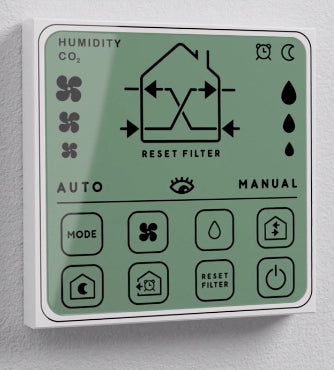

Wall panel with CO2 sensor

AUTOMATIC MODE

The humidity sensor and the twilight sensor are both active. The units, therefore, run on automatic without having to receive any additional commands.

MONITORING MODE

The units are in idle mode as standard with the shutter closed and the sensors active and will go into exhaust mode when the humidity exceeds the threshold set.

MANUAL MODE

The sensors are deactivated and the units are continuously in heat recovery mode. The user can decide at which speed the units should operate; these settings are kept until changed manually.

NIGHT MODE

In Night Mode, all heat recovery units operate at night speed until a different command is entered.

TIMED EXTRACT MODE

If you press this button in any one of the modes, all units go into extract mode for 20 minutes at maximum speed before they return to the mode previously set at the end of the cycle.

MASTER-SLAVE AIRFLOW MODE

In this mode, the units generate a continuous flow of air that flows from the units set up as MASTER VS SLAVE or MASTER EQUALS SLAVE without heat recovery.

 SLAVE MASTER AIRFLOW MODE

In this mode, the units generate a continuous flow of air that flows from the units set up as MASTER VS SLAVE or MASTER EQUALS SLAVE without heat recovery.
