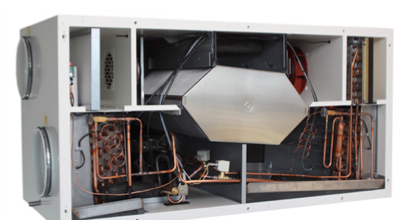

Premium preheat 250


Premium preheat 250 CL: Premium preheat 250 CL
Price:
Sale price€6,805.59

Description

Premium 250 is a air to air heat recovery ventilation unit with heat pump. The unit extracts air from the desired areas transferring the heat to the incoming air filtering as is passes through the unit. The unit will also function to cool the incoming filtered air. All controlled through a simple touch screen.

  • 200 M3/hr at 75Pa
  • 91% efficient heat exchanger
  • Can be fitted with F7 pollen filters
  • Heating and cooling effect.
  • Can be the only source of heat in the temperate months.
  • Option of 2  sizes of compressor CS or CL
  • COP for the CS is 7.8:1   and  CL is 5.35:1
  • Cooling capacity  CS is 823w  and CA is 1110w

    Premium Preheat 250, 300 and 500

    Product description

    The Premium Preheat-series are air-air heat recovery ventilation heat pumps which are equipped with the following: An aluminum counter current heat exchanger, a heat pump with cooling function, pre-heater integrated in the heat pump, supply and extract air fans, F7 supply air filter, M4 extract air filter, and complete Optima 301 automatics.

    For the Optima 301, a control panel called Optima Design can be purchased. Optima Design is a stylish white control panel which provides access to the most important functions via a simple user interface with push buttons. Please note that the control panel is sold separately.

    Suitability

    Premium Preheat is suitable in buildings, where you want a combination of heat recovery ventilation and supply of comfort heating or cooling with the supply air. Before the fresh air is drawn into the house, heat is supplied to it in the counter current heat exchanger - heat recovered from the extract air. Then additional heat is supplied to the supply air by the heat pump and thereby it contributes to the home heating. If it is desired that cooling is supplied to the air instead, this is also possible. The supply air filter ensures that dirt and pollen is not brought into the house.

    Three different sizes

    Premium Preheat is available in three different sizes that each are suitable for different sizes of buildings and have different air volumes. They are all available in right- or left-handed versions.

    Premium Preheat 250: Air volume approx. 350 m³/h at 100 PA

    Premium Preheat 300: Air volume approx. 400 m³/h at 100 PA

    Premium Preheat 500: Air volume approx. 650 m³/h at 100 PA

Data sheet for Premium preheat 250 CS/CL

Installation instructions

Controller Optima 301
